Scissor Lifts Explained: Low-Rise, Full-Rise and Flush-Mounted

Scissor lifts are the type most often dismissed early and regretted later. They are quieter about what they do than a two-post, and in buildings that cannot take a post lift they are frequently the only sensible answer.

They also cover a wider range than most people realise, from a low platform for tyre work to a full-rise wheels-free lift that does most of what a two-post does.

How a scissor lift works

A folding linkage, driven hydraulically, raises a platform or a pair of pads from below. Because the mechanism collapses into itself, the lift needs very little height when lowered and nothing at all above the vehicle — which is the whole point.

The trade-off is that the mechanism occupies the space beneath the vehicle's centre, so underbody access is more restricted than on a two-post lift.

Low-rise scissor lifts

Typically raising to somewhere around 1 metre. They are aimed at work you do crouching or seated rather than standing underneath.

Suits: tyres, brakes, wheel work, bodywork, valeting and detailing.
Limits: not a lift for standing underneath, and the platform sits under the vehicle's centre.

Many are portable or semi-portable, which makes them useful as a second lift for a specific job type rather than a bay's main equipment.

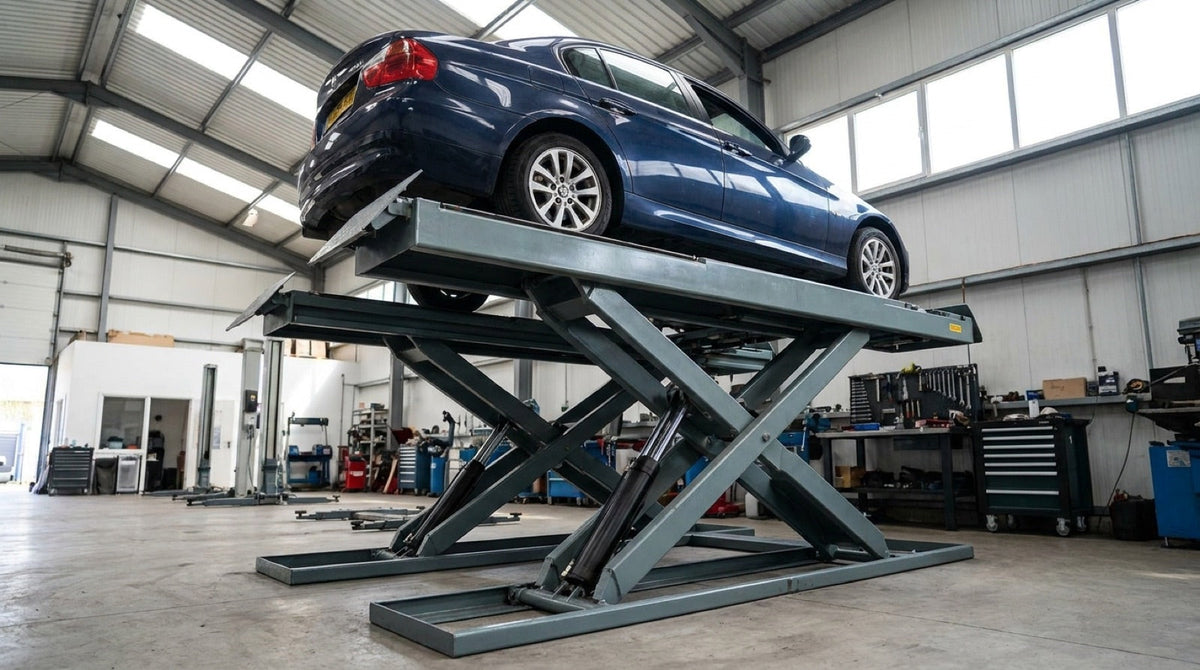

Full-rise scissor lifts

Raising to a proper standing working height, generally around 1.8 to 2 metres.

Suits: general servicing where a post lift will not fit; buildings with restricted height; workshops wanting a clear floor when lowered.
Limits: central underbody access remains restricted; higher cost than low-rise.

Wheels-free versions add a secondary lift on the platform, raising the vehicle off its wheels so you can take wheels off — closing much of the gap to a two-post.

Surface-mounted or flush-mounted

Surface-mounted lifts bolt to the floor and sit proud when lowered. Simpler and cheaper to install, and they can be relocated. The platform is a permanent feature of the bay.

Flush-mounted lifts sit in a recess cut into the slab, so when lowered the platform is level with the floor and the bay is completely clear. Excellent where a bay does double duty, and the tidiest solution in a customer-facing workshop. It requires groundwork, drainage consideration and a slab that can take the recess — establish that before committing, as covered in our guide to concrete requirements.

Where a scissor lift is the right answer

• Restricted ceiling height. The most common reason, and often decisive. Our guide to workshop space covers measuring properly.
• A bay used for more than one thing. Flush-mounted, the floor is clear when the lift is down.
• Tyre and brake work at volume. Fast to load, and the right height for the job.
• Alignment. Purpose-built alignment scissor lifts with turnplates and slip plates are a genuine alternative to a four-post — see adding wheel alignment.
• Awkward buildings where roof structure rules out post lifts.

Where it is not

If you have the height and your work is general mechanical repair, a two-post lift gives better underbody access for the money. A scissor is a solution to a constraint, or a specialist tool for a job type — it is not usually the default choice for a workshop that could have either. Our comparison of the three lift types sets out the trade-offs.

What to check when specifying

• Capacity, with margin — see choosing lifting capacity.
• Platform length against the longest vehicles you handle. Short platforms struggle with vans.
• Lowered height, which decides whether low sports cars can drive on.
• Maximum rise, and whether it gives you a working height you can stand at.
• Wheels-free capability, if you need wheels off.
• Air or power requirements — many scissor lifts use compressed air for lock release, per our power and air guide.
• Ramps and approach, and whether they suit your bay.

Compliance is the same

A scissor lift is lifting equipment like any other. It needs thorough examination by a competent person before first use and every six months thereafter, and a maintenance regime under PUWER — see our LOLER guide. The folding mechanism has its own wear points, particularly pivots and safety props, and these get close attention at examination.

Frequently asked questions

What is a scissor lift used for in a garage?

Tyre, brake, wheel and bodywork jobs on low-rise models, and general servicing on full-rise models. They are most often chosen where ceiling height rules out a two-post or four-post lift.

What is the difference between low-rise and full-rise scissor lifts?

Low-rise models raise to around a metre, for work done crouching. Full-rise models reach standing working height, generally around 1.8 to 2 metres.

Can you take wheels off on a scissor lift?

Only on a wheels-free model, which has a secondary lift on the platform to raise the vehicle off its wheels. Standard platforms keep the wheels loaded.

What is a flush-mounted scissor lift?

One installed in a recess in the floor, so the platform sits level with the surrounding concrete when lowered and leaves the bay completely clear. It requires groundwork and a suitable slab.

Do scissor lifts need less ceiling height?

Yes, considerably. Nothing sits above the vehicle, so the constraint is the vehicle height plus the rise, rather than a column or crossbar.
