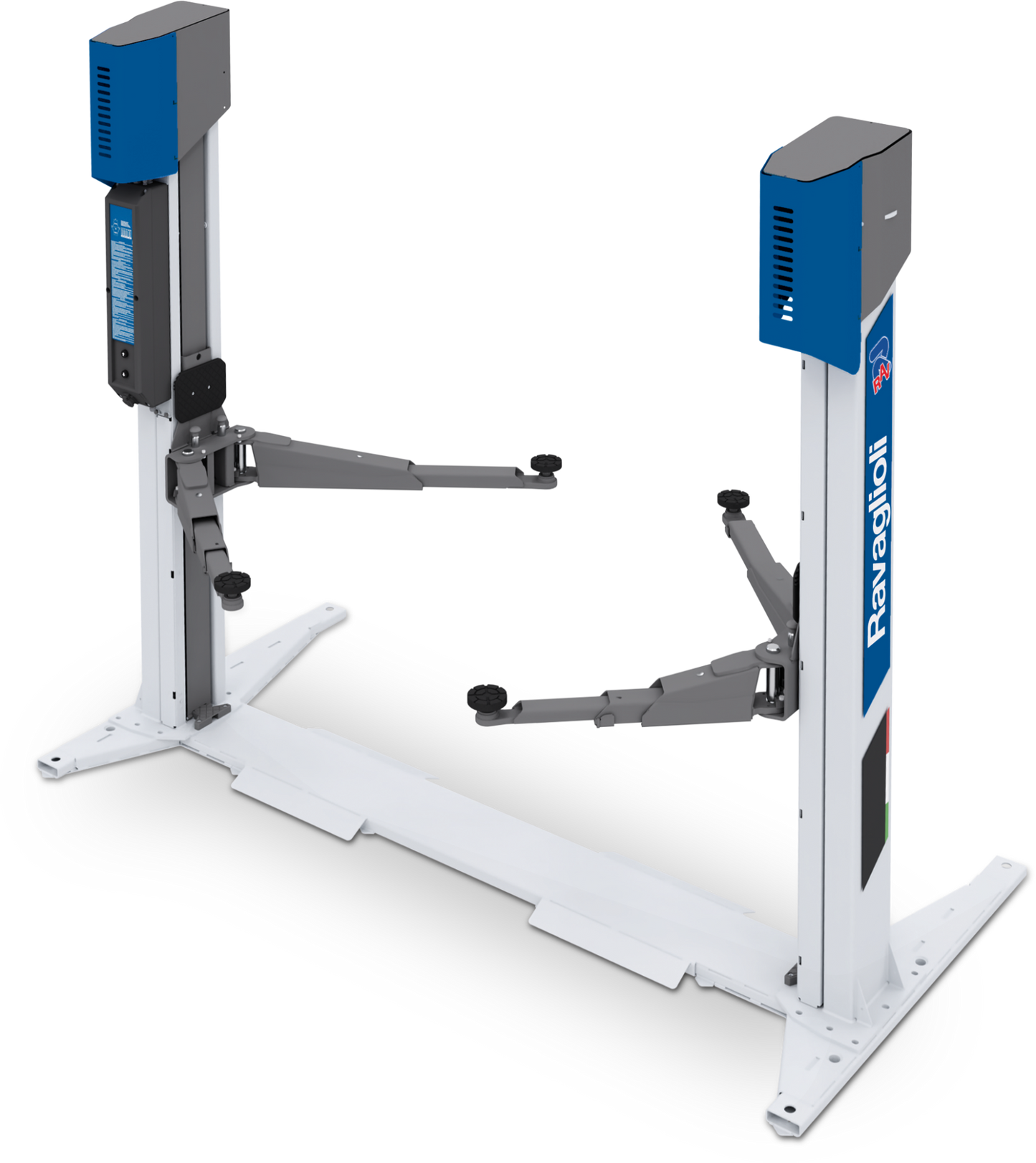

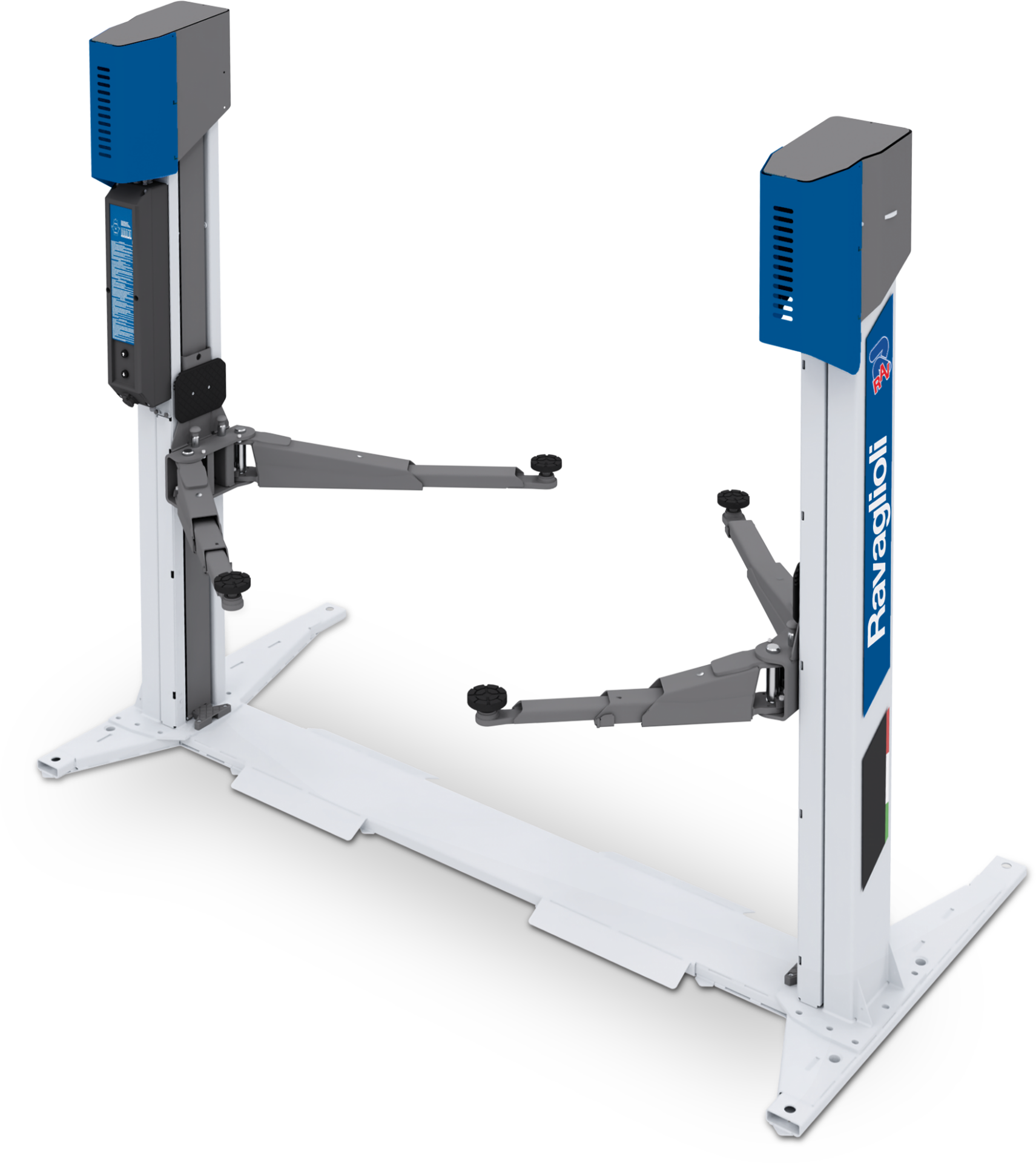

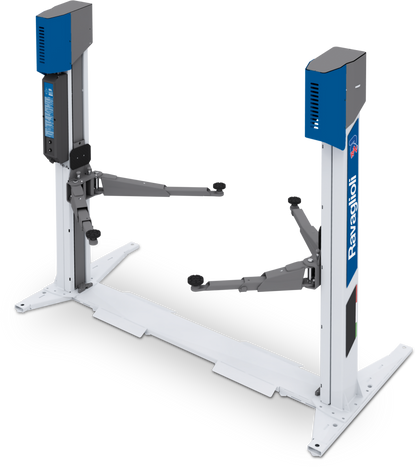

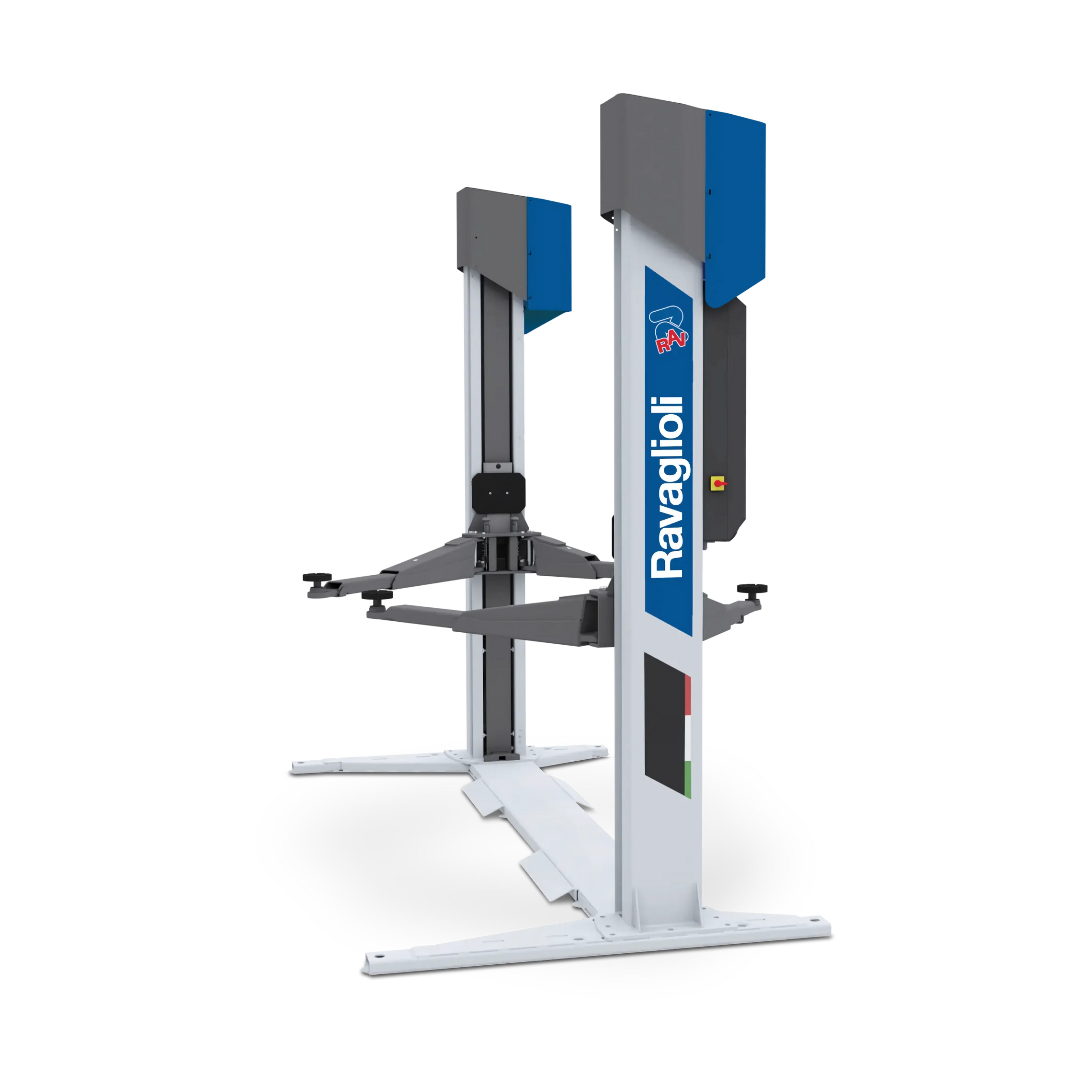

Ravaglioli KPS32 2-Post Electromechanical Lift 3200KG Capacity

In stock, ready to ship!

Sale price £4,290.00 -100% Regular price
Regular price £4,290.00
£5,148.00 incl. VAT
Ravaglioli KPS32 2-Post Electromechanical Lift 3200KG Capacity
Sale price £4,290.00 Regular price
Regular price £4,290.00

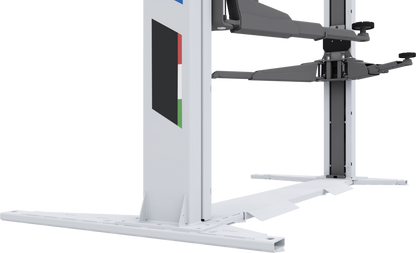

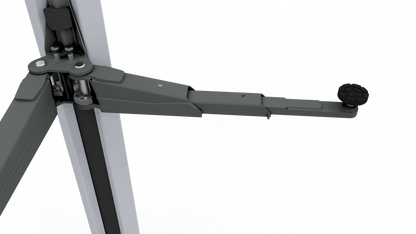

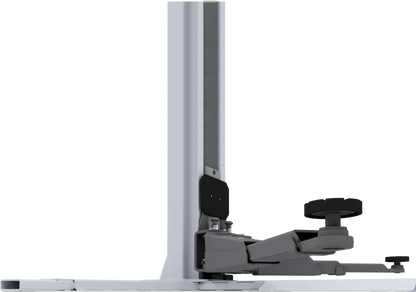

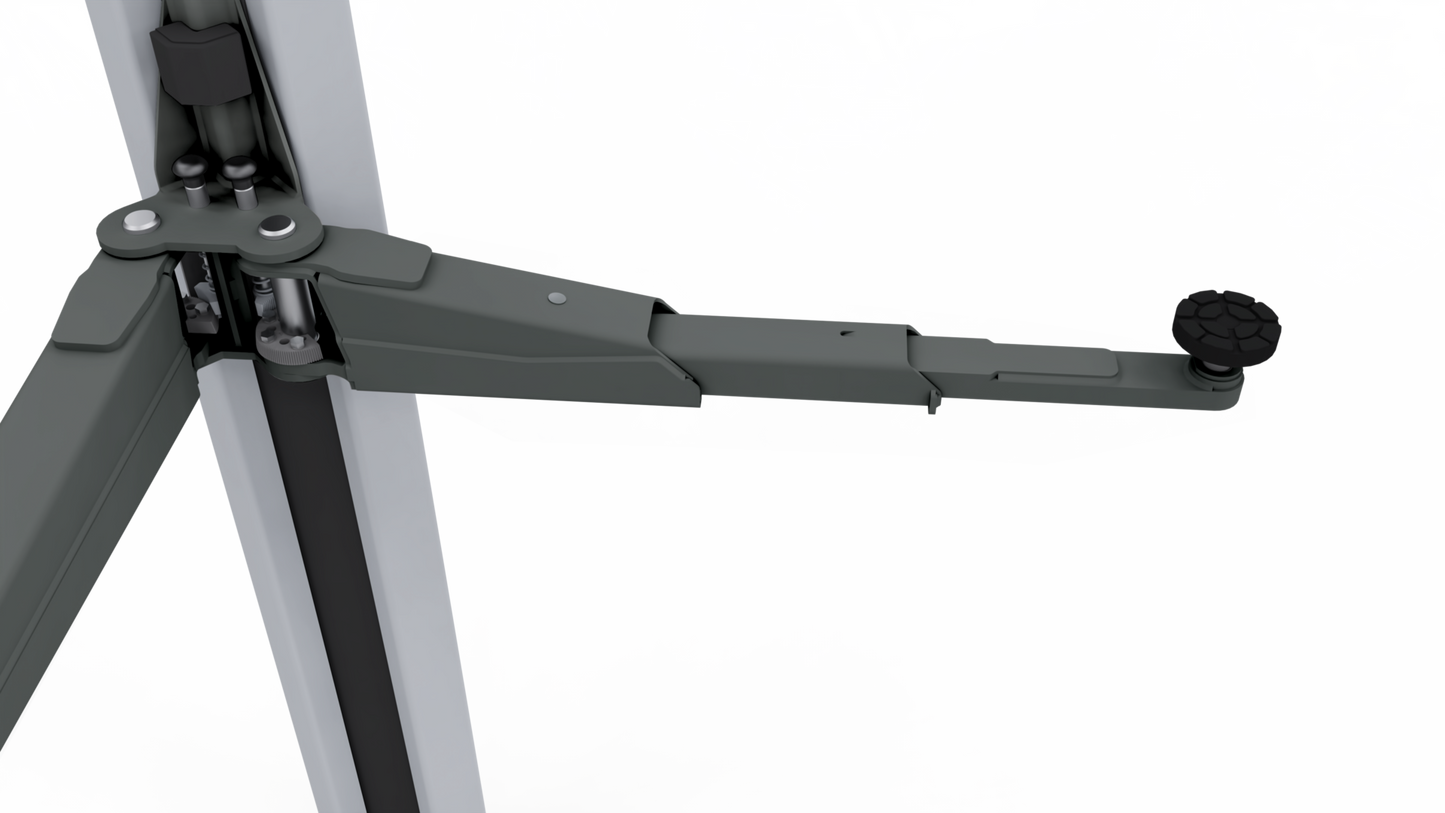

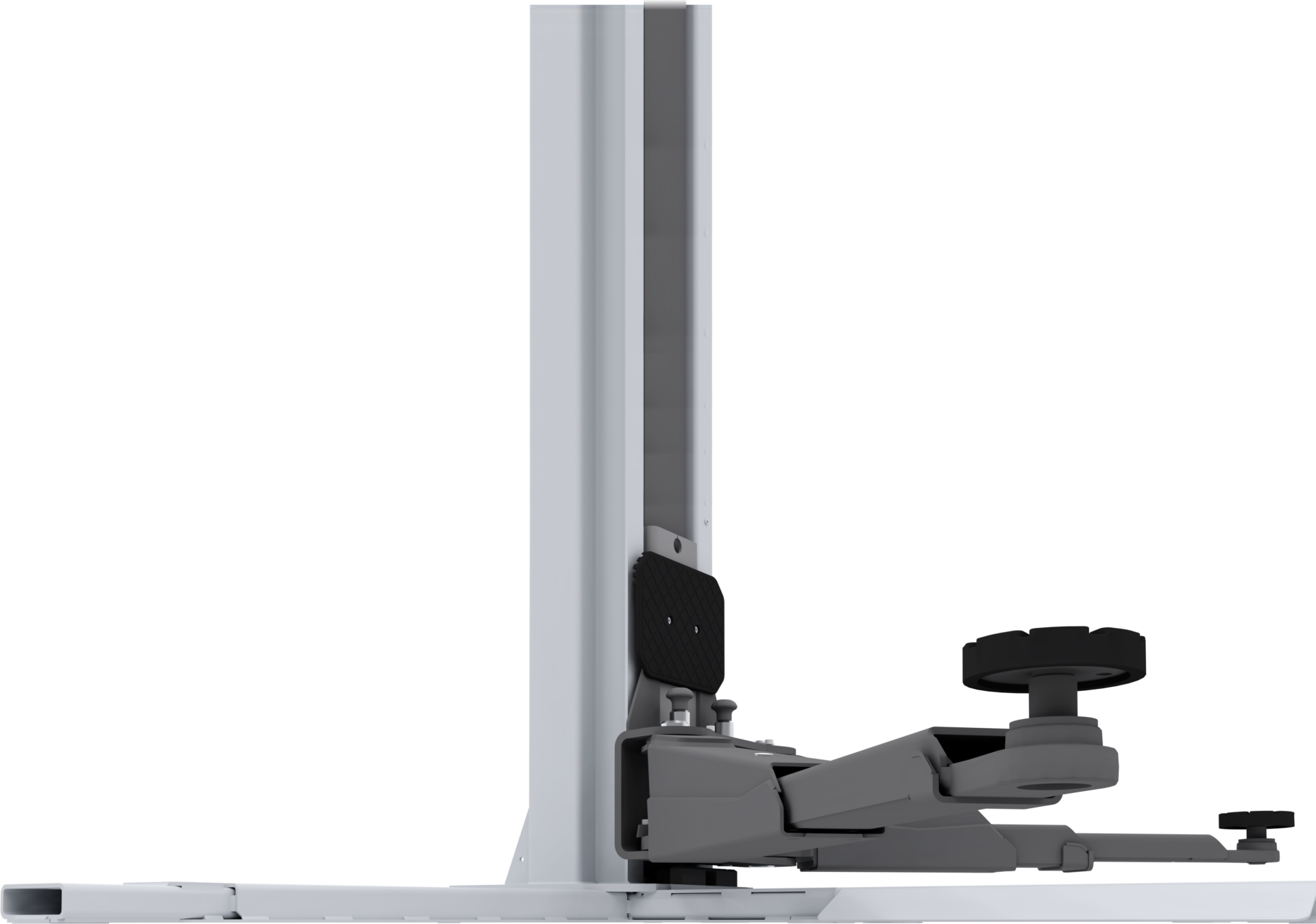

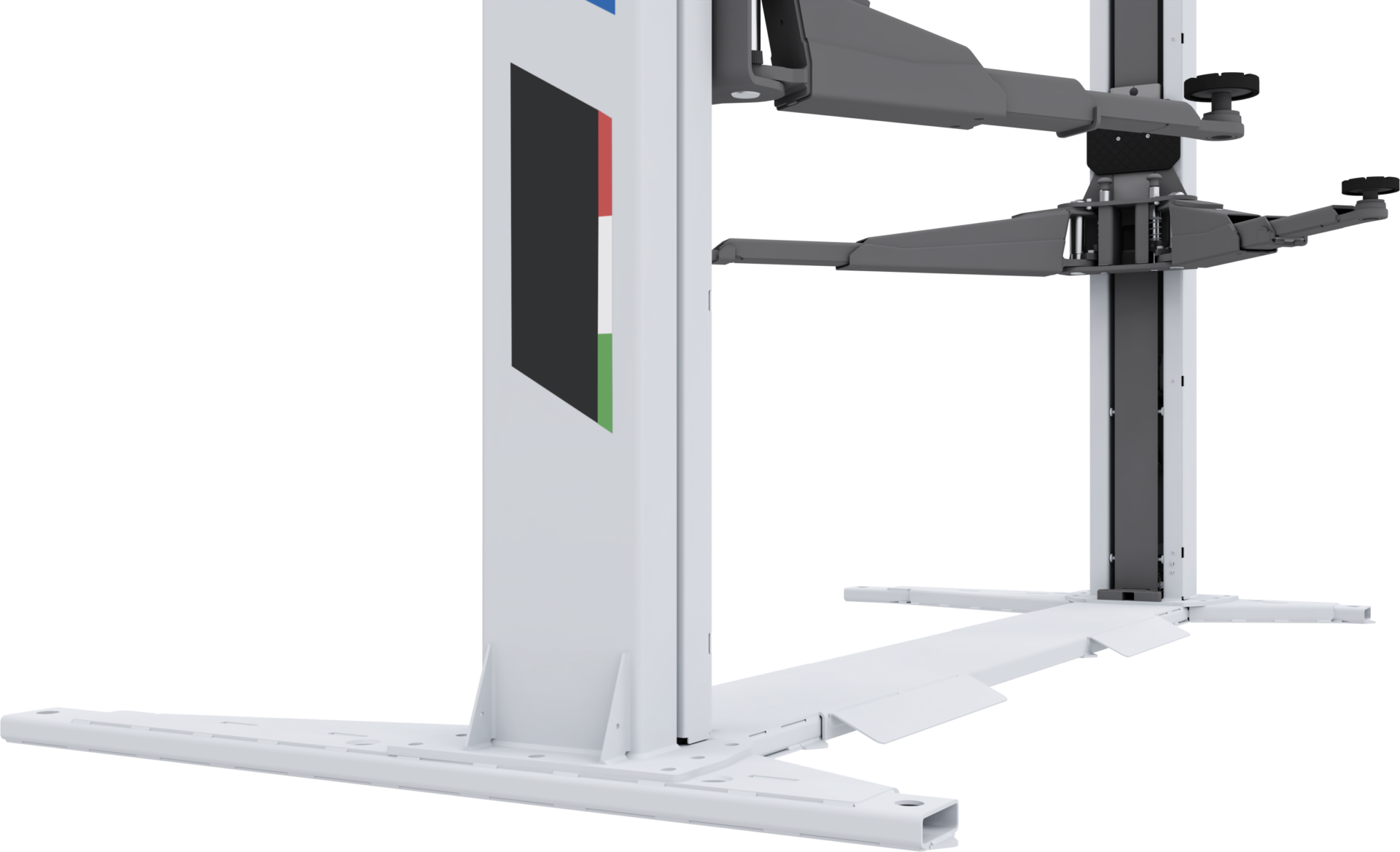

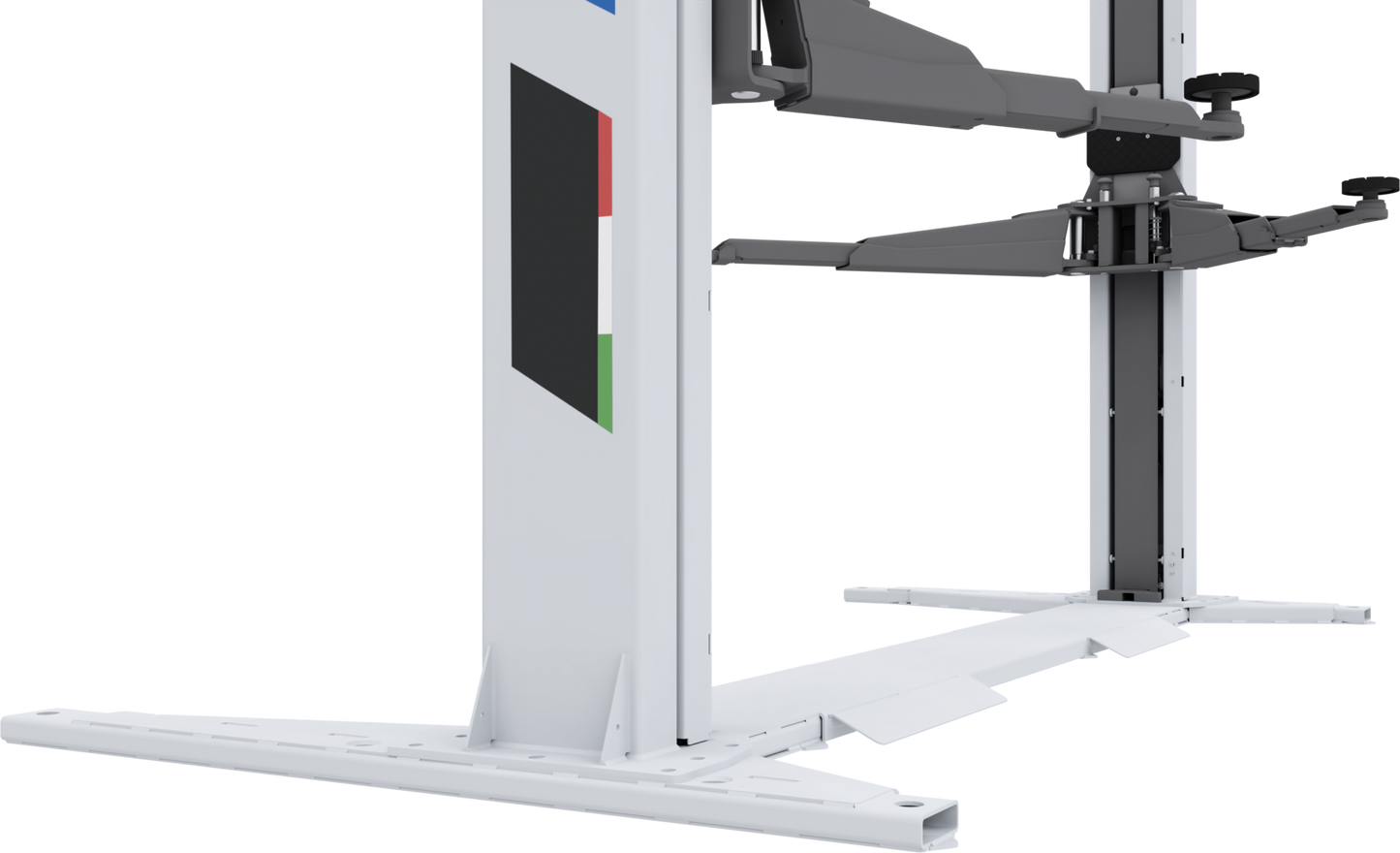

The Ravaglioli KPS32 is a high-performance 3.2-tonne 2-post lift designed to deliver reliability and versatility in professional workshop environments. Its load-bearing base allows installation even on floors with uneven surfaces or those that don’t fully meet standard concrete strength and thickness requirements (please refer to the manual for exact installation guidelines). With a lowered platform height of just 50 mm, it’s ideal for servicing vehicles with low ground clearance. The lift’s asymmetrical arm geometry is engineered to safely accommodate everything from compact cars to long-wheelbase models, while its short 3-stage front arms and long 2-stage rear arms, equipped with quick-fit telescopic rubber pads, ensure fast and precise positioning.

Engineered for long-term durability and minimal maintenance, the KPS32 features premium components throughout. Internal carriages glide on lubricated, environmentally shielded sliding guides, reducing wear and extending service life. Electronic synchronization and overhead cable routing eliminate the need for floor obstructions and cable realignment. The new column design allows for fast nut replacement from the front, while components such as bronze load nuts (50% longer), aluminium pulleys with cooling function, reinforced motor casings, and solid automatic arm locking all contribute to a safer, more efficient workspace. An acoustic anti-toe trap system ensures added operator safety without the need for mechanical foot guards.

100% Satisfaction Guaranteed

Fast Shipping

Expert Support

Number of columns: 2
Rated load capacity: 3200 kg
Mode of drive: Electromechanical
Control: Electric
Type of installation: Surface mounted
Max. lifting height: 1883 mm
Lifting time: 42 s
Min. plate height: 110 mm
Max. plate height: 176 mm
Clear span between: 2685 mm
Clear span between (out): 3158 mm
Column height: 2833 mm
Drive-through width: 2468 mm
Required ceiling height: 4050 mm
Surface coating: Powder coated
Arm layout: Asymmetrical
Telescopic front arms: 3-fold
Telescopic rear arms: 2-fold
Min. front arm length: 541 mm
Max. front arm length: 950 mm
Min. rear arm length: 815 mm
Max. rear arm length: 1215 mm
Weight: 850 kg
Driving power: 2 x 2.6 kW
Power supply: 400 V | 50 Hz
Width: 3336 mm
Height: 2833 mm
Max. height: 2833 mm
