Symmetric vs Asymmetric Two-Post Lift Arms

Two identical-looking two-post lifts can behave quite differently in the bay, and the reason is usually the arms. Symmetric or asymmetric, two-stage or three-stage, standard or low-profile: these choices decide which vehicles you can lift comfortably and whether the driver's door opens once it is up there.

It is the specification most often glossed over at the point of purchase, and the one people notice every day afterwards.

Symmetric arms

All four arms are the same length, and the vehicle sits centrally between the columns with its weight split evenly front to rear.

Strengths

• Even load distribution, which suits longer and heavier vehicles.
• Well suited to vans and light commercials, where weight sits further back.
• Simple to position — the vehicle goes in the middle.

Limitations

• The doors line up with the columns. On a car, opening the driver's door fully can be awkward or impossible.
• Less convenient for interior access during a service.

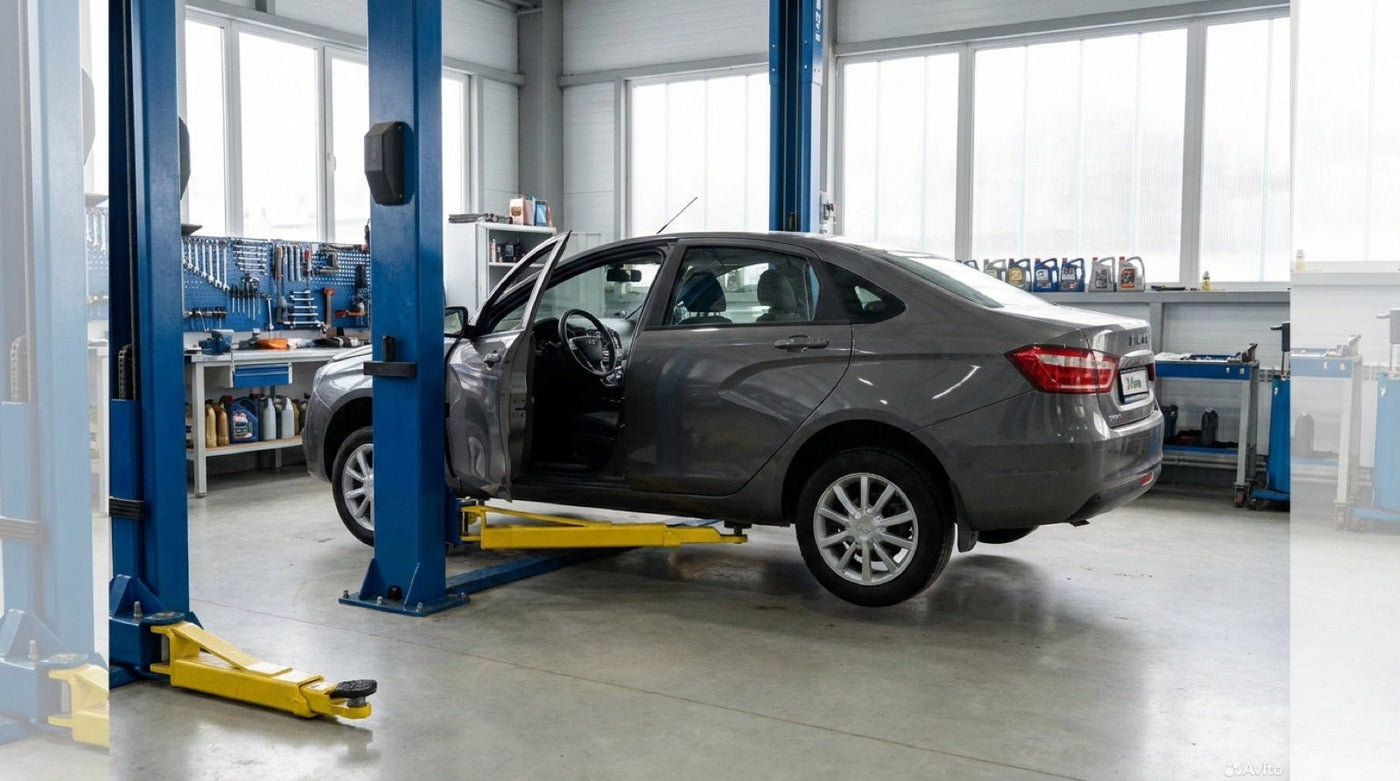

Asymmetric arms

The front arms are shorter than the rear ones, and the columns are usually rotated slightly. The vehicle sits further back, placing the door openings clear of the columns.

Strengths

• Doors open properly, which matters constantly on car work.
• Easier access to the cabin for diagnostics, road-test prep and interior jobs.
• The natural choice for a car-focused workshop.

Limitations

• Load is deliberately biased rearward, so the front-to-rear distribution limits matter more.
• Less suited to long-wheelbase vans, where that bias works against you.
• Positioning has to be right — the benefit disappears if the vehicle is driven in too far.

Which to choose

Your work	Usually points to
Cars and light SUVs, general servicing	Asymmetric
Regular van and light commercial work	Symmetric
Mixed, leaning towards cars	Asymmetric, with three-stage arms
Mixed, leaning towards commercial	Symmetric, with adaptors

Many modern lifts are described as versymmetric or similar, offering arms that work either way. These are a sensible compromise for a genuinely mixed workload, though they still favour one mode over the other in practice — ask how, rather than assuming they do both equally well.

Two-stage and three-stage arms

Separate from symmetry is how far the arms telescope.

• Two-stage arms extend in one section. Adequate for a consistent range of vehicles.
• Three-stage arms add a further section, giving both a shorter minimum and a longer maximum reach. They reach the awkward pick-up points on small cars and stretch to a van's chassis rails.

If your workload varies at all, three-stage arms are usually worth the difference. The extra reach is what lets one lift cover a small hatchback in the morning and a long-wheelbase van in the afternoon.

Pads, adaptors and pick-up heights

The pad is where the lift meets the vehicle, and it decides as much as the arm does.

• Minimum pad height determines whether you can get under a low sports car at all.
• Screw-up pads adjust height at the pad to suit uneven pick-up points.
• Adaptors and extensions reach the higher chassis rails on vans and 4x4s.
• Low-profile and jointed pads matter for electric vehicles, where the pack limits where a pad can sit — see our guide to preparing your workshop for EVs.
• Rubber condition is a safety item, not a cosmetic one. Worn or oil-soaked pads slip.

Arm restraints

Every two-post lift has a mechanism that stops the arms swinging once the vehicle is raised. It is easy to ignore because it works quietly, and it is one of the first things a competent person checks at examination.

Worn restraint teeth let arms creep under load. If an arm can be moved by hand with the vehicle up, the lift needs attention before it is used again — see our guide to LOLER inspections.

Getting positioning right

Even the correct arms give poor results if the vehicle is badly placed:

• Position so the vehicle's centre of gravity sits correctly relative to the columns — roughly over the arm pivots, not level with the front bumper.
• Set all four pads on manufacturer-specified points before lifting anything.
• Raise until the pads just take weight, then stop and check contact on all four before continuing.
• Watch the vehicle through the first few inches of travel.
• Lower onto the mechanical locks before working underneath.

Frequently asked questions

What is the difference between symmetric and asymmetric lift arms?

Symmetric lifts have four equal-length arms and centre the vehicle between the columns. Asymmetric lifts have shorter front arms and set the vehicle further back so the doors open clear of the columns.

Which is better for a car garage?

Asymmetric, in most cases. Being able to open the doors fully matters on almost every car job, and the rearward bias is not a problem at car weights.

Are asymmetric lifts suitable for vans?

Less so. The deliberate rearward load bias works against you on a long-wheelbase van. Regular commercial work is generally better served by symmetric arms.

Do I need three-stage arms?

If your workload varies at all, they are usually worth it. They reach low pick-up points on small cars and extend to chassis rails on vans, letting one lift cover a wider range.

What are screw-up pads for?

They adjust height at the pad, so all four can make firm contact when pick-up points sit at different heights — common on 4x4s and vehicles with underbody trays.
