Brake Testers Explained: Rollers, Plates and Decelerometers

Brake performance is one of the few things on a vehicle you cannot judge by eye. A pedal that feels firm tells you very little about whether the braking effort is balanced across an axle, and imbalance is what puts a car into a hedge on a wet road.

Measuring it properly needs equipment. There are three types in common use in UK garages, and they suit very different workshops.

Roller brake testers

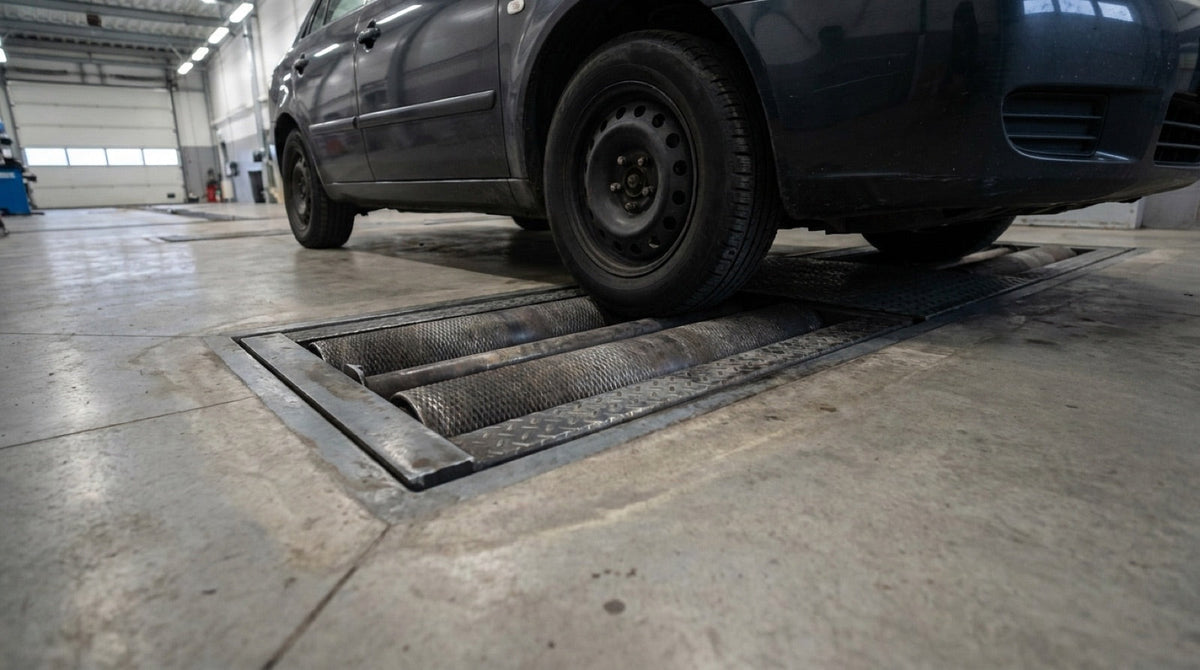

The equipment most people picture. Two pairs of powered rollers sit in a recess in the floor. The wheels of one axle are driven by the rollers, the brakes are applied, and the machine measures the braking force at each wheel independently.

Strengths

• Measures each wheel separately, so imbalance across an axle is immediately visible.
• Repeatable, and independent of road conditions, weather and driver technique.
• Produces a printed record that means something to a customer.
• Can measure parking brake performance properly.
• Suits a dedicated inspection lane and high throughput.

Limitations

• The largest investment of the three, by a wide margin.
• Requires groundwork — a recess in the slab, with drainage considered.
• Occupies a fixed position, so the bay is committed.
• Not suitable for every vehicle. Some four-wheel-drive systems cannot be tested on rollers, and the manufacturer's guidance has to be followed.

Plate brake testers

The vehicle is driven over two parallel plates at low speed and braked. The plates measure the forces generated as the vehicle decelerates across them.

Strengths: quick, a single pass tests the vehicle, and it needs less depth of groundwork than rollers.
Limitations: more dependent on how the vehicle is driven onto it, less informative on parking brakes, and less common in UK independent workshops.

Decelerometers

A portable instrument placed in the vehicle, which measures the rate of deceleration during a controlled brake application on a road test.

Strengths

• A fraction of the cost of a roller tester.
• No installation, no groundwork, no bay committed.
• Works on vehicles that cannot go on rollers, including certain four-wheel-drive systems.
• Portable between vehicles and sites.

Limitations

• Measures overall deceleration, not individual wheels — so it does not show imbalance the way rollers do.
• Requires a suitable, safe stretch of road and consistent technique.
• Results are affected by surface, weather and load.

Choosing between them

	Roller	Plate	Decelerometer
Measures each wheel	Yes	Partly	No
Installation	Groundwork, fixed	Groundwork, fixed	None
Relative cost	Highest	Middle	Lowest
Road test needed	No	No	Yes
Weather dependent	No	No	Yes
Best suited to	Inspection lanes, volume	Quick throughput	Smaller garages, awkward vehicles

For a smaller independent, a decelerometer is a sensible first step: it costs little, needs no building work, and lets you give a customer a measured answer instead of an opinion. For a workshop running an inspection lane at volume, a roller tester is the tool that pays for itself in throughput and in the quality of the record it produces.

What it is worth commercially

Measured brake testing changes the conversation with a customer. "Your brakes are worn" is an opinion they may or may not act on. A printed figure showing one wheel producing materially less braking force than the other is evidence, and it converts.

It also protects you. If a vehicle leaves your workshop after brake work, having a measurement on file is a considerably better position than having a road-test impression.

Installation and floor

Roller and plate testers sit in a recess in the slab, which means groundwork, a floor that can take the cut, and drainage considered at the planning stage. This is worth establishing before you commit — see our guide to concrete requirements. Position matters too: the vehicle needs a straight approach and room to drive off, which is a layout question as much as an equipment one — see workshop layout.

Frequently asked questions

What is a roller brake tester?

A floor-mounted unit with powered rollers that drives each wheel of an axle in turn and measures braking force at each wheel independently, revealing imbalance as well as overall performance.

What is the difference between a roller brake tester and a decelerometer?

Rollers measure each wheel separately in the workshop. A decelerometer measures the whole vehicle's deceleration during a road test, so it shows overall performance but not imbalance across an axle.

Do I need groundwork for a brake tester?

For roller and plate testers, yes — they sit in a recess in the slab, so the floor must be able to take the cut and drainage needs planning. A decelerometer needs no installation.

Can every vehicle go on a roller brake tester?

No. Some four-wheel-drive systems cannot be tested on rollers, and manufacturer guidance must be followed. This is one reason many garages keep a decelerometer even with rollers installed.

Which should a small garage buy first?

A decelerometer, in most cases. It costs little, requires no building work, and lets you give customers a measured figure rather than an opinion.
